By far the most common approach to DNA diagnostics is amplification of the target sequence to produce enough copies for a signal to be observed using conventional detection systems. However, an alternative approach does exist - direct analysis of the target DNA by signal amplification. This latter technique requires that the synthetic oligonucleotide should contain the primary sequence attached to many identical copies of the secondary sequence. It is the detection of the many copies of the secondary sequence that serves to amplify the signal. The resulting branched oligonucleotide has been aptly described as comb-like, with the primary sequence in the handle and the secondary sequences being the teeth of the comb.1 Using this strategy, as few as 50 molecules of the HIV-1 genome have been quantified in human serum.2
A branching monomer is clearly required to construct comb-like oligonucleotides. For a monomer to generate a branch point in an oligonucleotide sequence, it requires an intermediate with 3 hydroxyl groups. The first hydroxyl is used to generate the phosphoramidite that is necessary for coupling. The second is protected with a DMT group for normal deblocking with acid prior to chain elongation. The third should be protected with a group that is stable during the synthesis of the primary sequence, but is easily removed after completion of the primary sequence, allowing the secondary sequences to be prepared by further synthesis cycles on the original synthesis column. The developers of the comb system from Chiron Corporation evaluated3 several protecting groups for the third hydroxyl and chose levulinyl (Lev), which is specifically removed using a reagent containing hydrazine hydrate*, acetic acid and pyridine. Although non-nucleosidic structures were evaluated, the authors3 chose to use the dC derivative, (1) in Figure 1, as the branching monomer.Synthesis of Simple Branch StructuresThis product is very straightforward to use in the synthesis of branched oligos with only a few branch points, as shown in Table 1. If a non-branching control is desired, simply deprotect in ammonium hydroxide as required by the protecting groups on the nucleobases.
The synthesis of complex structures is much more involved but the authors4offer some suggestions to streamline the process, as shown in Table 2. Using this general procedure, the authors were able to prepare comb oligonucleotides containing as many as 50 branch sites.References:
The methylation of cytosine in the CpG motif of DNA almost invariably leads to a reduction in gene expression and is one of the most prevalent methods for the epigenetic regulation of genes. Cytosine-5-methyltransferases are found in everything from archaebacteria to mammals and when the regulation of cytosine-5-methyltransferases goes awry, cancer can result. DNA methyltransferases were found to be essential for cancer cell survival1 and to work in concert with p532. The mechanism of action for this family of enzymes involves attack of a cysteine thiol group on the C6 position of cytosine, leading to a transient dihydrocytosine intermediate, which then facilitates the nucleophilic attack by C5 on the activated methyl group of the S-adenosyl-L-methionine cofactor.
As with many enzymes, the intermediate can be trapped using a suicide substrate and 5-fluoro-cytosine3 has been used extensively in this role. An alternate strategy is to use a transition-state mimic that binds to the active site with high affinity. An excellent candidate was found in 5-aza-5,6-dihydrocytosine. Despite not being covalently bound to the enzyme, it was found4,5 to be a more potent inhibitor of cytosine-5-methyltransferases than 5-fluoro-cytosine. Fortunately, 5-aza-5,6-dihydro-dC is amenable to conversion to the phosphoramidite6and is compatible with standard oligonucleotide synthesis and deprotection conditions. We enthusiastically offer this monomer, (2) in Figure 1, as a new tool for use in methyltransferase research. We are pleased to highlight the work done on the chemistry and biology of 5-azacytosines and their interaction with cytosine-5-methyltransferase by Victor Marquez and co-workers.
When we introduced Amino-Modifier C6 dA in 2003, we were aware that the structure was not optimal and that there would be some destabilization of the base pair with dT. Indeed, the base pair was destabilized by 2°C per insertion but binding was still found to be specific for dA. We noted at the time that the optimal attachment point in purines was probably the 7-position of the 7-deaza purine and preferably using the 7-deaza-8-aza analogue. However, these analogues are very difficult to make and are consequently very expensive. In the case of Amino-Modifier C6 dA, we have been encouraged by its popularity despite these shortcomings. So we felt it would be reasonable to offer the dG analogue, Amino-Modifier C6 dG, (3) in Figure 1. This dG analogue was found to maintain specificity for dC in oligos but the melting temperature was reduced by 3°C per insertion relative to the regular dG-dC base pair. (Melting temperatures for oligos containing a mismatch with dA, dG or T opposite dG were reduced by an additional 6-7°C.) Again, these structural characteristics may not be the ideal but Amino-Modifier C6 dG maintains a fair balance of performance and price.
|
Table 2: Synthesis of complex comb structures |
Primary Sequence
Comb Sequence
|

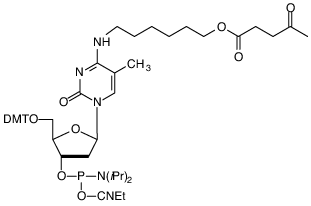

5-Me-dC Brancher Phosphoramidite (10-1018)
5-aza-5,6-dihydro-dC-CE Phosphoramidite (10-1511)
Amino-Modifier C6 dG has been discontinued. Please see N2-Amino-Modifier C6 dG (10-1529)
