Amino-Modifier C6 dT - (10-1039)

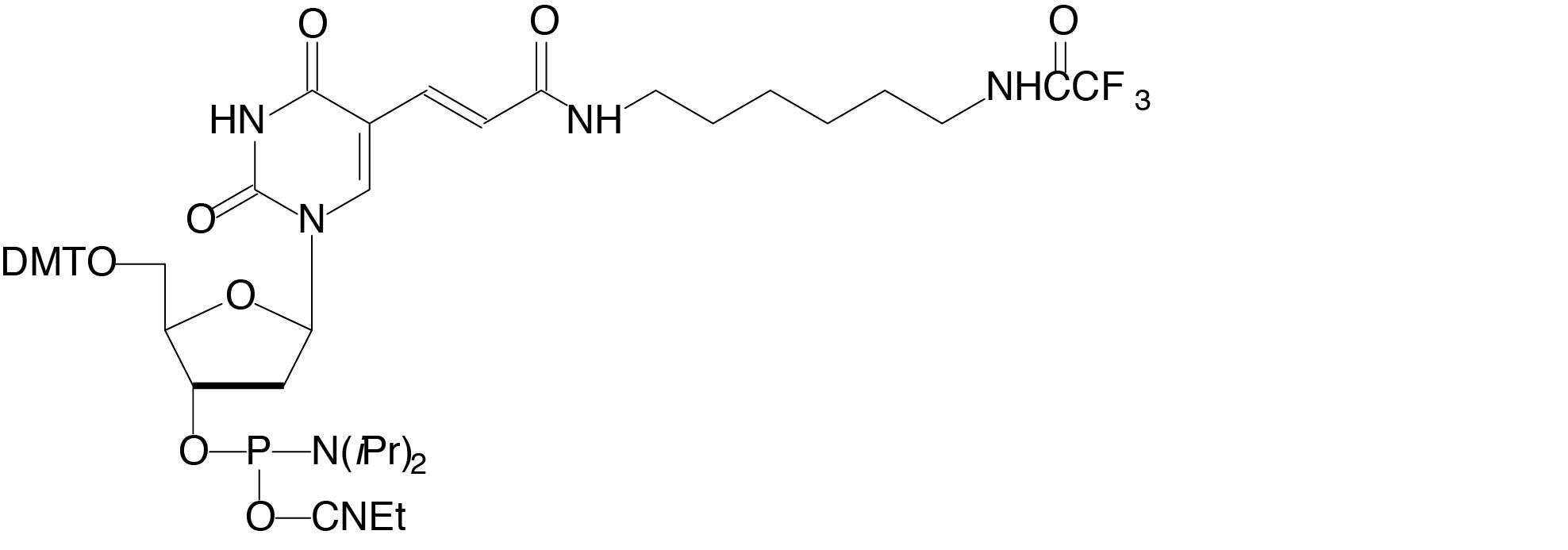

5'-Dimethoxytrityl-5-[N-(trifluoroacetylaminohexyl)-3-acrylimido]-2'-deoxyUridine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite

As low as $180.00

In stock

Only %1 left

default

10-1039

Product	Options
	To retrieve a catalog number, please select a pack size and format: Copy link to this configuration Size Format See Compatibility Chart 4. Select Your Quantity: Request a quote 3. Price

Product Specifications

Formula:

C₅₀H₆₂N₆O₁₀F₃P

M.W.:

995.05

F.W.:

458.41

CAS Number:

210534-16-0

5'-Dimethoxytrityl-5-[N-(trifluoroacetylaminohexyl)-3-acrylimido]-2'-deoxyUridine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite

Description

Sequence Modifiers are designed for use in automated synthesis. The carboxy-dT is hydrolyzed during deprotection and can be coupled directly to a molecule containing a primary amino group by a standard peptide coupling or via the intermediate N-hydroxysuccinimide (NHS) ester. Amino-Modifier dA, Amino-Modifier dC, N2-Amino-Modifier dG and both Amino-Modifier dT products can be added in place of a dA, dC, dG and dT residue, respectively, during oligonucleotide synthesis. Corresponding Amino-Modifier supports can replace their respective deoxynucleoside supports. After deprotection, the primary amine on the C6 analogues is separated from the oligonucleotide by a spacer arm with a total of 7 -10 atoms and can be labelled or attached to an enzyme. The C2 analogue is more suitable for the attachment of molecules designed to react with the oligonucleotide.

Details

Usage

Coupling: Amino-Modifier C6 dT reacts in a manner identical to normal phosphoramidites. To prevent side reactions, synthesize using acetyl-protected dC. See Deprotection for futher details.
Deprotection: No changes needed from standard method recommended by synthesizer manufacturer. The TFA protecting group is removed during standard ammonium hydroxide deprotection. A minor side reaction during ammonia deprotection can lead to irreversibly capping 2-5% of the amine. This could be significant if multiple additions of the modifier are made. To prevent the reaction, synthesize using acetyl-protected dC and deprotect in 30% ammonia/40% methylamine 1:1 (AMA) at 65°C for 15 minutes.

Specifications
Diluent	Anhydrous Acetonitrile
Recommended Storage	Refrigerated storage, maximum of 2-8°C, dry
Stability In Solution	2-3 days

Dilution/Coupling Data

The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.

ABI 392/394

Catalog #	Pack Size	Grams/Pack	0.1M Dil. (mL)	Approximate Number of Additions
				LV40	LV200	40nm	0.2μm	1μm	10μm
10-1039-02	0.25 g	.25grams	2.51	70.33	42.2	26.38	19.18	14.07	3.52
10-1039-05	0.5 g	.5grams	5.02	154	92.4	57.75	42	30.8	7.7
10-1039-90	100 µmol	.1grams	1	20	12	7.5	5.45	4	1

Expedite

Catalog #	Pack Size	Grams/Pack	Dilution (mL)	Approximate Number of Additions
				Molarity	50nm	0.2μm	1μm	15μm
10-1039-02	0.25 g	.25grams	3.75	0.07	68.6	42.88	31.18	4.29
10-1039-05	0.5 g	.5grams	7.5	0.07	143.6	89.75	65.27	8.98
10-1039-90	100 µmol	.1grams	1.5	0.07	23.6	14.75	10.73	1.48
