Amino-Modifier C6 dC - (10-1019)

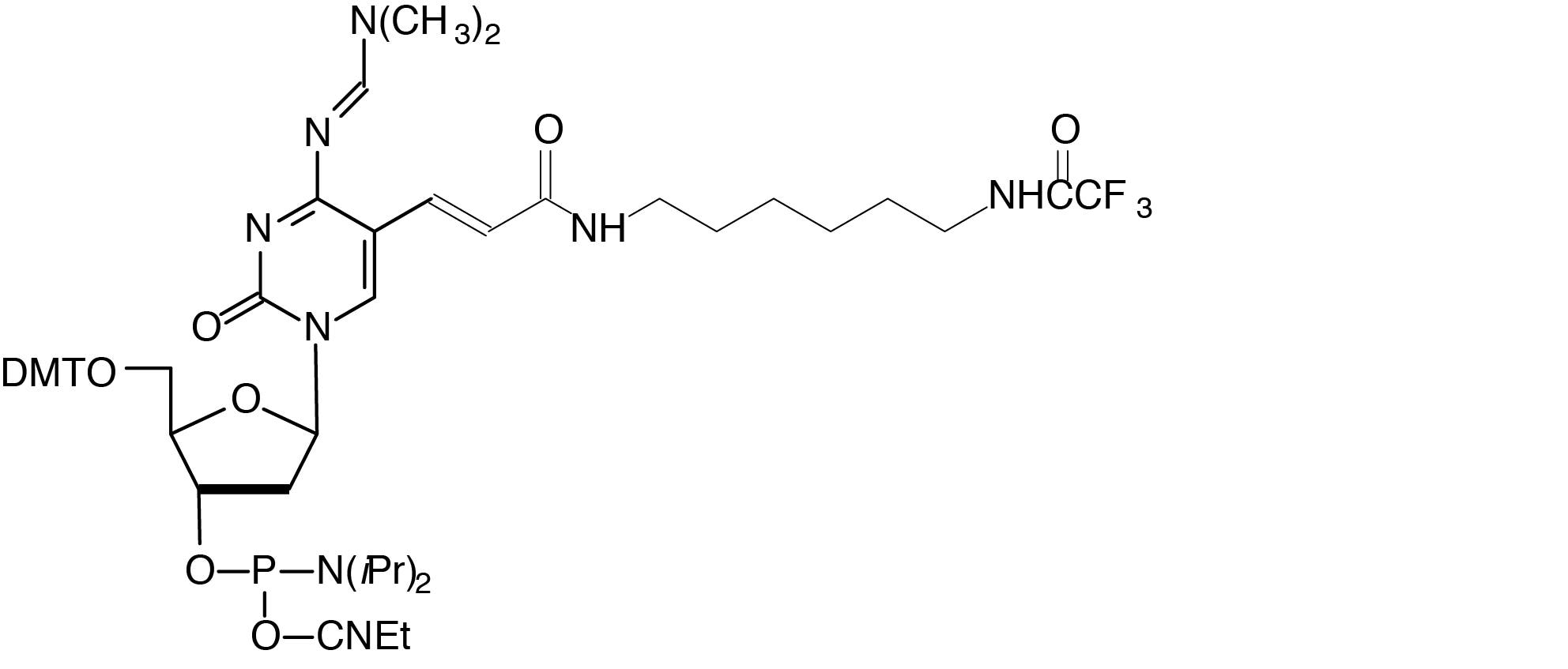

5'-Dimethoxytrityl-N-dimethylformamidine-5-[N-(trifluoroacetylaminohexyl)-3-acrylimido]-2'-deoxyCytidine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
As low as
$275.00
In stock
Only %1 left
default
10-1019
5'-Dimethoxytrityl-N-dimethylformamidine-5-[N-(trifluoroacetylaminohexyl)-3-acrylimido]-2'-deoxyCytidine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Description
Sequence Modifiers are designed for use in automated synthesis. The carboxy-dT is hydrolyzed during deprotection and can be coupled directly to a molecule containing a primary amino group by a standard peptide coupling or via the intermediate N-hydroxysuccinimide (NHS) ester. Amino-Modifier dA, Amino-Modifier dC, N2-Amino-Modifier dG and both Amino-Modifier dT products can be added in place of a dA, dC, dG and dT residue, respectively, during oligonucleotide synthesis. Corresponding Amino-Modifier supports can replace their respective deoxynucleoside supports. After deprotection, the primary amine on the C6 analogues is separated from the oligonucleotide by a spacer arm with a total of 7 -10 atoms and can be labelled or attached to an enzyme. The C2 analogue is more suitable for the attachment of molecules designed to react with the oligonucleotide.
Details
Usage
- Coupling: Amino-Modifier C6 dC reacts in a manner identical to normal phosphoramidites. To prevent side reactions, synthesize using acetyl-protected dC. See Deprotection for futher details.
- Deprotection: No changes needed from standard method recommended by synthesizer manufacturer. The TFA protecting group is removed during standard ammonium hydroxide deprotection. A minor side reaction during ammonia deprotection can lead to irreversibly capping 2-5% of the amine. This could be significant if multiple additions of the modifier are made. To prevent the reaction, synthesize using acetyl-protected dC and deprotect in 30% ammonia/40% methylamine 1:1 (AMA) at 65°C for 15 minutes.
Specifications | |
---|---|
Diluent | Anhydrous Acetonitrile |
Recommended Storage | Refrigerated storage, maximum of 2-8°C, dry |
Stability In Solution | 2-3 days |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
---|---|---|---|---|---|---|---|---|---|
LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
10-1019-02 | 0.25 g | .25grams | 2.38 | 66 | 39.6 | 24.75 | 18 | 13.2 | 3.3 |
10-1019-90 | 100 µmol | .105grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
Expedite
Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
---|---|---|---|---|---|---|---|---|
Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
10-1019-02 | 0.25 g | .25grams | 3.56 | 0.07 | 64.8 | 40.5 | 29.45 | 4.05 |
10-1019-90 | 100 µmol | .105grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
Technical documents
Certificate of analysis
CoA search tool
