TAMRA-dT - (10-1057)

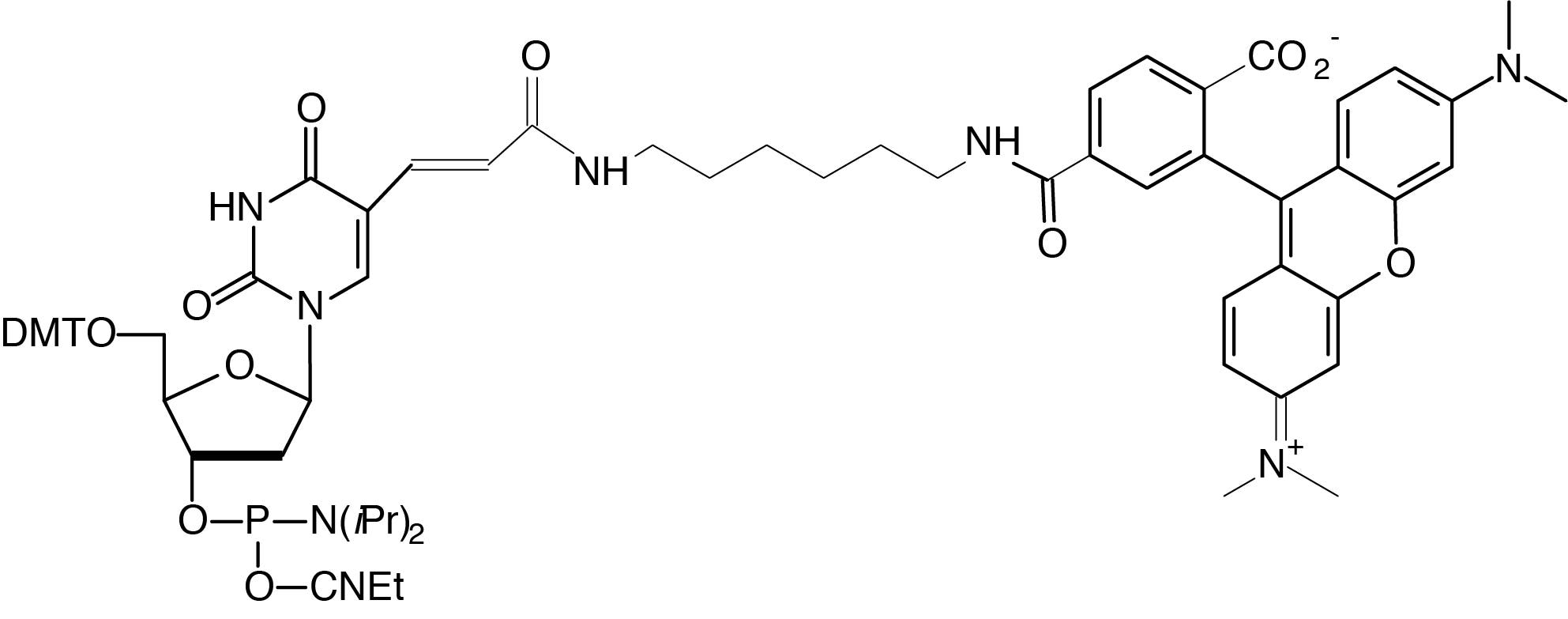

5'-Dimethoxytrityloxy-5-[N-((tetramethylrhodaminyl)-aminohexyl)-3-acrylimido]-2'-deoxyUridine-3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite

As low as $250.00

In stock

Only %1 left

default

10-1057

Product	Options
	To retrieve a catalog number, please select a pack size and format: Copy link to this configuration Size Format See Compatibility Chart 4. Select Your Quantity: Request a quote 3. Price

Product Specifications

Formula:

C₇₃H₈₃N₈O₁₃P

M.W.:

1311.48

F.W.:

870.85

CAS Number:

1266091-48-8

5'-Dimethoxytrityloxy-5-[N-((tetramethylrhodaminyl)-aminohexyl)-3-acrylimido]-2'-deoxyUridine-3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite

Description

Rhodamine derivatives are not sufficiently stable to survive conventional deprotection and these must be attached to amino-modified oligonucleotides using post-synthesis labelling techniques. Because Tetramethyl Rhodamine (TAMRA) is not base stable, the procedure to cleave and deprotect the labelled oligonucleotide must be carefully considered. Using the UltraMILD monomers and deprotection with potassium carbonate in methanol, TAMRA oligonucleotides can be fairly conveniently isolated. To streamline the preparation of TAMRA oligos, we offer 3'-TAMRA CPG for 3' labelling and TAMRA-dT for labelling within the sequence. We also offer TAMRA NHS ester for labelling amino-modified oligonucleotides.

The spectral characteristics of this dye is detailed here.

Details

Usage

Coupling: Dissolve this product in anhydrous acetonitrile:THF (9:1). Allow 15 minutes for the product to go into solution. A 6 minute coupling time is recommended. Use either dmf-dG (10-1029-xx) with standard monomers and Cap A or use UltraMILD monomers (dA: 10-1601-xx, dC: 10-1015-xx, dG: 10-1621-xx, dT: 10-1030-xx ) and UltraMILD Cap Mix A (40-4210-xx/ 40-4212-xx)
Deprotection: If standard monomers were used, deprotect in tert-butylamine/water 1:3 (v/v) for 6 hours at 60°C. If UltraMILD monomers were used, deprotect in 0.05M Potassium Carbonate in Methanol

Specifications
Diluent	10% THF in Anhydrous Acetonitrile
Recommended Storage	Freezer storage, -10 to -30°C, dry
Stability In Solution	24 hours

Dilution/Coupling Data

The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.

ABI 392/394

Catalog #	Pack Size	Grams/Pack	0.1M Dil. (mL)	Approximate Number of Additions
				LV40	LV200	40nm	0.2μm	1μm	10μm
10-1057-02	0.25 g	.25grams	1.91	50.33	30.2	18.88	13.73	10.07	2.52
10-1057-90	100 µmol	.131grams	1	20	12	7.5	5.45	4	1
10-1057-95	50 µmol	.066grams	0.5	3.33	2	1.25	0.91	0.67	0.17

Expedite

Catalog #	Pack Size	Grams/Pack	Dilution (mL)	Approximate Number of Additions
				Molarity	50nm	0.2μm	1μm	15μm
10-1057-02	0.25 g	.25grams	2.85	0.07	50.6	31.63	23	3.16
10-1057-90	100 µmol	.131grams	1.5	0.07	23.6	14.75	10.73	1.48
10-1057-95	50 µmol	.066grams	0.75	0.07	8.6	5.38	3.91	0.54
