Psoralen C6 Phosphoramidite - (10-1983)

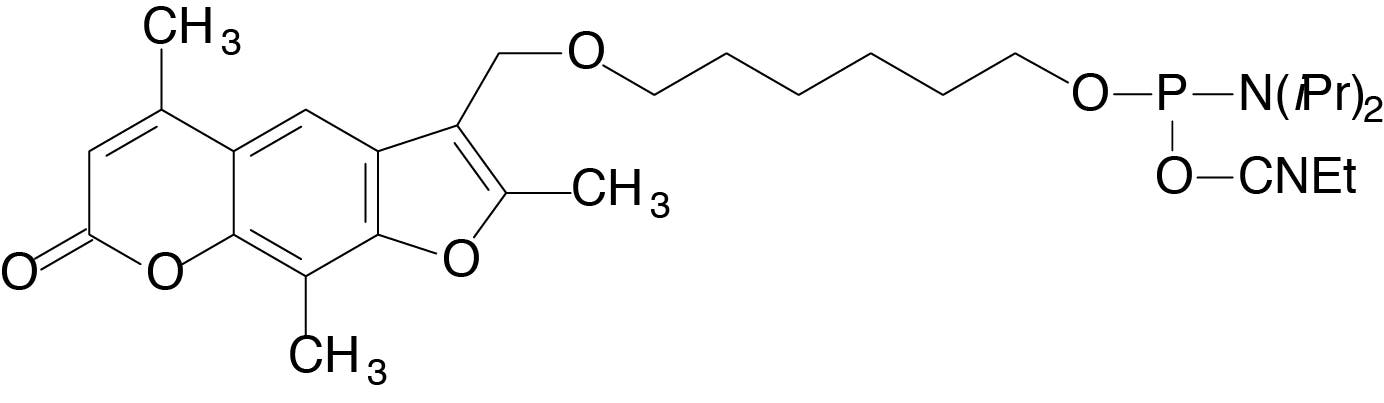

6-[4'-(Hydroxymethyl)-4,5',8-trimethylpsoralen]-hexyl-1-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite
As low as
$205.00
In stock
Only %1 left
default
10-1983
6-[4'-(Hydroxymethyl)-4,5',8-trimethylpsoralen]-hexyl-1-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite
Description
Psoralen C2 at the 5’-terminus of an oligonucleotide serves effectively as a cross-linking reagent in double-stranded oligonucleotides. The 6 atom spacer arm of Psoralen C6 allows cross-linking with a triplex oligonucleotide strand. Click Chemistry with psoralen azide and one of our many nucleosidic and non-nucleosidic alkyne derivatives has the potential to generate a variety of practical cross-linkers. The well known reversible cross-linking behavior of psoralen with an adjacent thymidine residue could be very useful.
Details
Usage
- Coupling: 10 minute coupling time recommended.
- Deprotection: Mild: 0.4M Methanolic NaOH 17hr @ RT or ammonium hydroxide 24h @ RT|Note: NaOH is not compatible with dmf protecting groups.
| Specifications | |
|---|---|
| Diluent | Anhydrous Acetonitrile |
| Recommended Storage | Freezer storage, -10 to -30°C, dry |
| Stability In Solution | 2-3 days |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
| Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
|---|---|---|---|---|---|---|---|---|---|
| LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
| 10-1983-02 | 0.25 g | .25grams | 4.48 | 136 | 81.6 | 51 | 37.09 | 27.2 | 6.8 |
| 10-1983-90 | 100 µmol | .056grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
Expedite
| Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
|---|---|---|---|---|---|---|---|---|
| Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
| 10-1983-02 | 0.25 g | .25grams | 6.68 | 0.07 | 127.2 | 79.5 | 57.82 | 7.95 |
| 10-1983-90 | 100 µmol | .056grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
Technical documents
Certificate of analysis
CoA search tool
Related products
Related Products
Psoralen C2 Phosphoramidite
Cat. No.: 10-1982
Acridine Phosphoramidite
Cat. No.: 10-1973
3'-Acridine CPG
Cat. No.: 20-2973
5-I-dU-CE Phosphoramidite
Cat. No.: 10-1091
Psoralen Azide
Cat. No.: 50-2009
Products FAQS
Psoralens are a class of naturally occurring heterocyclic compounds which intercalates between bases in double-stranded or triple stranded DNA. Upon exposure to long wavelength light (350 nm) Psoralen forms covalent linkages to Thymidine (cyclobutane linkage). Psoralen is a bifunctional reagent and can form either a monoadduct, linking one adjacent thymidine on the same or complimentary strand, or a diadduct, linking adjacent thymidines on the same or complimentary strands. Diadducts formed between adjacent thymidines are photoreversable with short wavelength UV light (254 nm).
