5-I-dU-CE Phosphoramidite - (10-1091)

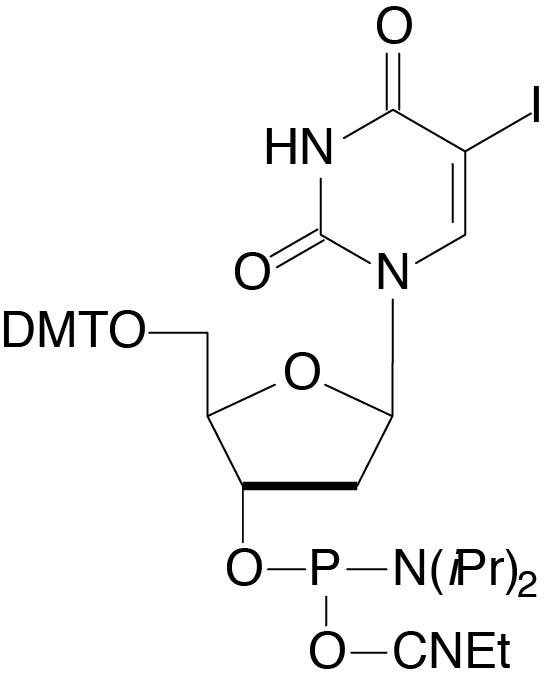

5'-Dimethoxytrityl-5-iodo-2'-deoxyUridine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
As low as
$65.00
In stock
Only %1 left
default
10-1091
5'-Dimethoxytrityl-5-iodo-2'-deoxyUridine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Description
Brominated and iodinated nucleosides are used in crystallography studies of oligonucleotide structure. They are also photolabile and are used for cross-linking studies to probe the structure of protein-DNA complexes. Antibodies exist to Br-dU and oligonucleotides containing Br-dU can be used as probes.
Details
Usage
- Coupling: No changes needed from standard method recommended by synthesizer manufacturer.
- Deprotection: Mild Ammonium Hydroxide for 24 hours at room temperature
Specifications | |
---|---|
Diluent | Anhydrous Acetonitrile |
Recommended Storage | Refrigerated storage, maximum of 2-8°C, dry |
Stability In Solution | 24 hours |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
---|---|---|---|---|---|---|---|---|---|
LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
10-1091-02 | 0.25 g | .25grams | 2.92 | 84 | 50.4 | 31.5 | 22.91 | 16.8 | 4.2 |
10-1091-90 | 100 µmol | .086grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
Expedite
Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
---|---|---|---|---|---|---|---|---|
Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
10-1091-02 | 0.25 g | .25grams | 4.36 | 0.07 | 80.8 | 50.5 | 36.73 | 5.05 |
10-1091-90 | 100 µmol | .086grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
Technical documents
Certificate of analysis
CoA search tool
Products FAQS
Please see: Extinction Table
REFERENCE(S):B. Froehler, Gilead, M. Powell, R. Somers
The most widely used method seems to be using Br-dU and, more recently, I-dU (1). The substitution of photoreactive Br and I for the 5-Me group of thymidine is attractive since their radii are similar to that of the methyl group. These modifications do not significantly affect the binding of oligonucleotides with proteins. Br-dU is irradiated at 308nm and crosslinking is typically not greater than 40%. Crosslinking of I-dU at 308nm is higher but is optimal at 325nm. Laser excitation is preferred.After the synthesis of oligonucleotides containing Br-dU or I-dU, care must be taken to avoid loss of the halogens. Even though both modifications are quite stable to ammonium hydroxide, it is sensible to play safe and carry out the deprotection at room temperature for 24 hours. Even better, use the UltraMild monomers and deprotect with potassium carbonate in methanol at room temeperature. The oligonucleotide products should be protected from light - plastic tubes and amber vials are safe. Gel electrophoresis should be carried out protected from light.||REFERENCE(S):(1) M.C. Willis, B.J. Hicke, O.C. Uhlenbeck, T.R. Cech and T.H. Koch, Science, 1993, 262, 1255.||
