Pyrene-dU-CE Phosphoramidite - (10-1590)

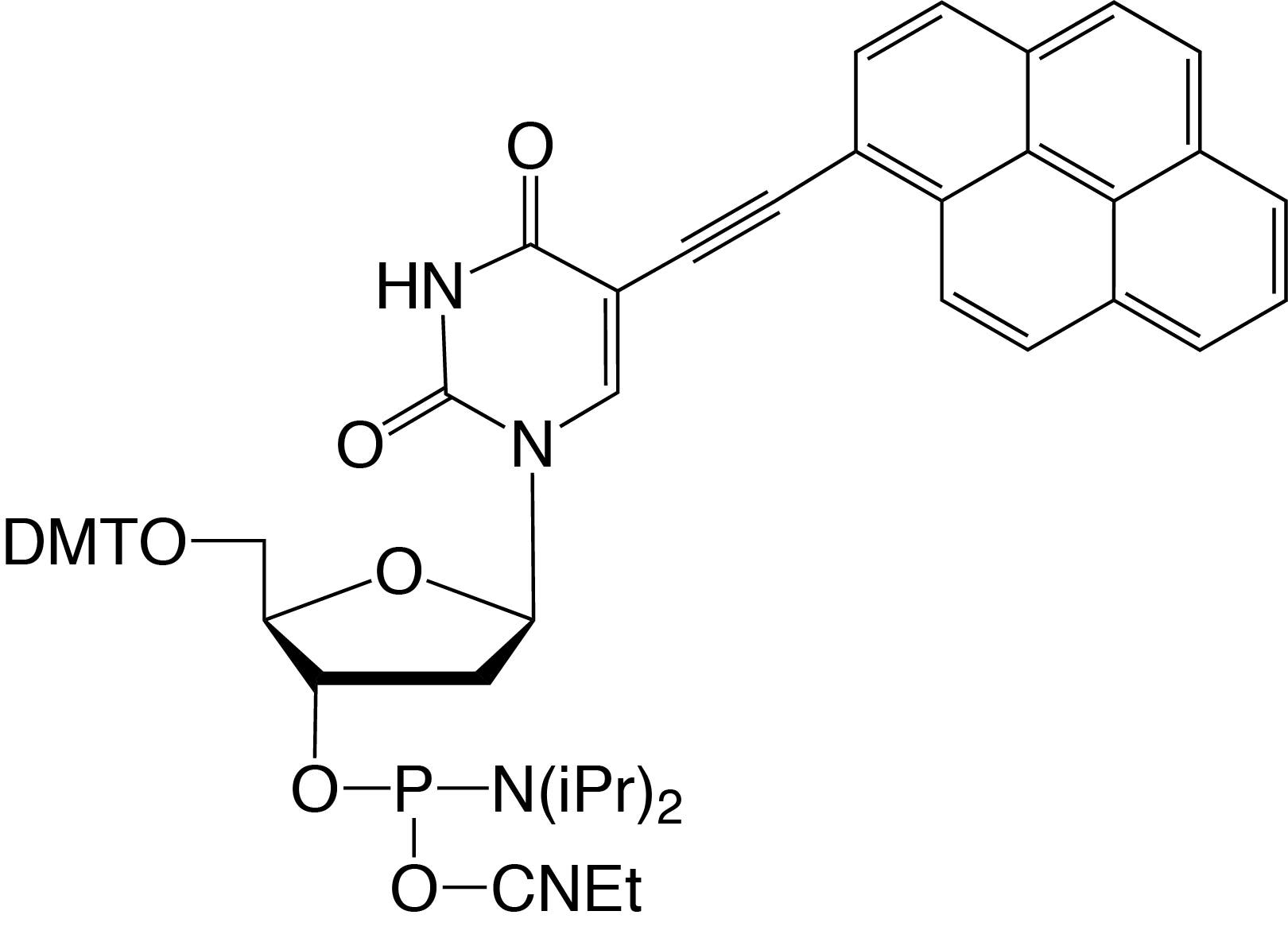

5'-Dimethoxytrityl-5-(pyren-1-yl-ethynyl)-2'-deoxyUridine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
As low as
$130.00
In stock
Only %1 left
default
10-1590
5'-Dimethoxytrityl-5-(pyren-1-yl-ethynyl)-2'-deoxyUridine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Description
When a benzylcarbamoyl analogue of AP-dC (G-Clamp) was synthesized, it was found that, when incorporated into an oligo, it exhibited similar fluorescence to AP-dC. However, when base-paired against the 8-oxo-dG, its fluorescence was severely quenched. Rather remarkably, however, when base paired with dG or any of the other bases, A, C or T, there was no change in fluorescence - making it a specific probe for 8-oxo-dG.
By attaching pyrene or perylene to the 5 position of deoxyuridine through a triple bond, the fluorophore is electronically coupled to the deoxyuridine base. This electronic coupling of the base and the fluorophore makes the fluorescence sensitive to the base pairing of the dU portion of the molecule, allowing the discrimination between perfect and one base mismatched targets.
Details
Usage
- Coupling: 6 minute coupling time recommended.
- Deprotection: No changes needed from standard method recommended by synthesizer manufacturer.
Specifications | |
---|---|
Diluent | Anhydrous Acetonitrile/Dichloromethane 1:1 (v/v) |
Recommended Storage | Freezer storage, -10 to -30°C, dry |
Stability In Solution | 1-2days |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
---|---|---|---|---|---|---|---|---|---|
LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
10-1590-02 | 0.25 g | .25grams | 2.62 | 74 | 44.4 | 27.75 | 20.18 | 14.8 | 3.7 |
10-1590-90 | 100 µmol | .096grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
10-1590-95 | 50 µmol | .048grams | 0.5 | 3.33 | 2 | 1.25 | 0.91 | 0.67 | 0.17 |
Expedite
Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
---|---|---|---|---|---|---|---|---|
Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
10-1590-02 | 0.25 g | .25grams | 3.91 | 0.07 | 71.8 | 44.88 | 32.64 | 4.49 |
10-1590-90 | 100 µmol | .096grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
10-1590-95 | 50 µmol | .048grams | 0.75 | 0.07 | 8.6 | 5.38 | 3.91 | 0.54 |
Technical documents
Certificate of analysis
CoA search tool
References
Cutting antiparallel DNA strands in a single active site Chen, X., Cui, Y., Best, R.B. et al.
Products FAQS
Please see Extinction Table
REFERENCE(S) Oligonucleotide Properties Calculator
