Universal-CE Phosphoramidite - (10-5000)

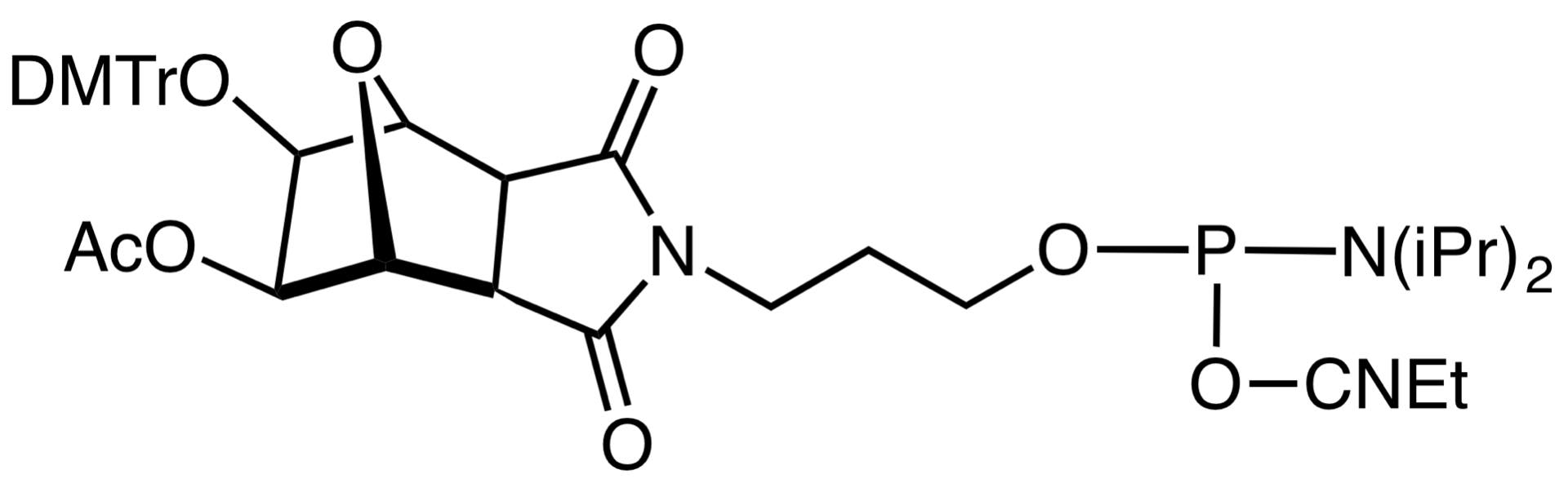

3-[(3aR,4R, 5R, 6S, 7S)-6-(4,4'-dimethoxytrityloxy)-5-acetoxy-1-,3-dioxooctahydro-1H-4,7-epoxyisoindol-2-yl]propyl-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
As low as
$45.00
In stock
Only %1 left
default
10-5000
3-[(3aR,4R, 5R, 6S, 7S)-6-(4,4'-dimethoxytrityloxy)-5-acetoxy-1-,3-dioxooctahydro-1H-4,7-epoxyisoindol-2-yl]propyl-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Description
Cleavable linkers have a wide range of application uses. We now offer Universal-CE, a dual-purpose linker capable of revealing 3’-OH termini or serving as a 5’-amino modifier C3 upon cleavage. Used as a universal phosphoramidite, the resulting oligonucleotides with a 3’-OH may be crucial for downstream applications, such as primer extension or ligation assays. Used as an amino modifier, the resulting oligonucleotides would be identical to those generated with 5’-Amino-Modifier C3-TFA.
Details
Usage
- Coupling: No changes needed from standard method recommended by synthesizer manufacturer.
- Deprotection: Deprotect using Ammonium Hydroxide:MethylAmine (AMA) 1:1 for 1 hour at 65 °C or Ammonium Hydroxide for 8 hours at 55 °C. For sensitive minor bases or dyes, use 50 mM Potassium Carbonate in Methanol in 17 hours at room temperature or with Tert-Butylamine/water 1:3 (v/v) for 4 hours at 60 °C.
Specifications | |
---|---|
Diluent | Anhydrous Acetonitrile |
Recommended Storage | Freezer storage, -10 to -30°C, dry |
Stability In Solution | 1-2 Days |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
---|---|---|---|---|---|---|---|---|---|
LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
10-5000-90 | 100 µmol | 0.08 | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
10-5000-02 | 0.25 g | 0.25 | 3.11 | 90.33 | 54.2 | 33.98 | 24.64 | 18.07 | 4.52 |
Expedite
Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
---|---|---|---|---|---|---|---|---|
Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
10-5000-90 | 100 µmol | 0.08 | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
10-5000-02 | 0.25 g | 0.25 | 4.65 | 0.07 | 86.6 | 54.13 | 39.36 | 5.41 |
Technical documents
Certificate of analysis
CoA search tool
