7-Deaza-8-aza-dG-CE Phosphoramidite (PPG) - (10-1073)

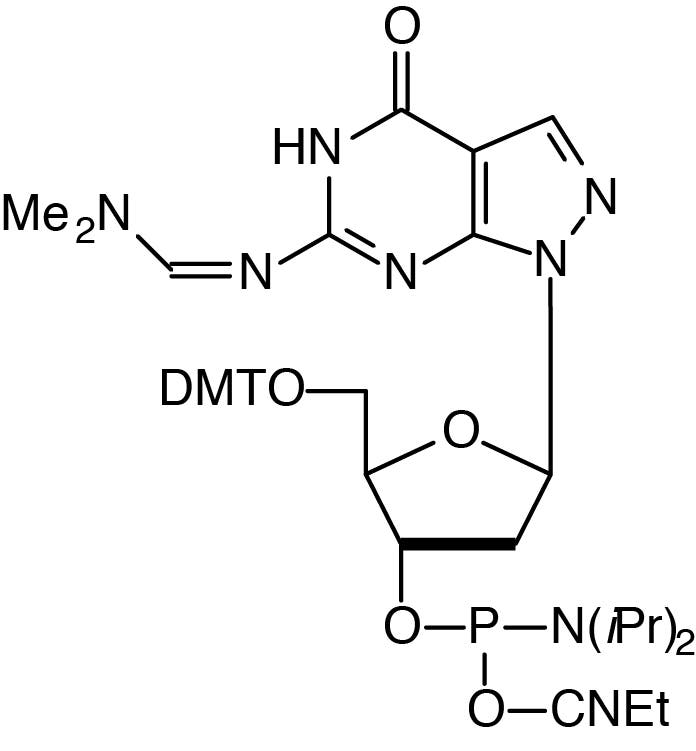

5'-Dimethoxytrityl-N-dimethylformamidine-8-aza-7-deaza-2'-deoxyGuanosine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
As low as
$350.00
In stock
Only %1 left
default
10-1073
5'-Dimethoxytrityl-N-dimethylformamidine-8-aza-7-deaza-2'-deoxyGuanosine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Description
Several products may be used to investigate the effect on the activity of an oligonucleotide when key structural elements are changed. The 7-deaza purine monomers lack groups critical for hydrogen bonding. 7-Deaza-8-aza-A and 7-deaza-8-aza-G (PPG) monomers are isomers of A and G and have similar electron density. Their presence in oligos is slightly stabilizing relative to A and G. Unlike G, PPG does not lead to aggregation and G-rich oligos can be easily prepared and isolated. 5'-Fluorescein oligos with PPG at the 5'-terminus are much less quenched than the equivalent G oligos. As a purine analogue of Thymidine, 7-deaza-2'-deoxyXanthosine (7-deaza-dX) promises to have interesting effects on DNA structure of triplexes. 7-Deaza-dX also forms a non-standard base pair with a 2,4-diaminopyrimidine nucleoside analogue. Standard nucleobases have an unshared pair of electrons that project into the minor groove of duplex DNA. Enzymes that interact with DNA, polymerases, reverse transcriptases, restriction enzymes, etc., may use a hydrogen bond donating group to contact the hydrogen bond acceptor in the minor groove. 3-Deaza-2'-deoxyadenosine is very interesting in that it maintains the ability for regular Watson-Crick hydrogen bonding to T but is lacking the electron pair at the 3-position normally provided by N3.
Details
Usage
- Coupling: No changes needed from standard method recommended by synthesizer manufacturer.
- Deprotection: No changes needed from standard method recommended by synthesizer manufacturer.
Specifications | |
---|---|
Diluent | Anhydrous Acetonitrile |
Recommended Storage | Refrigerated storage, maximum of 2-8°C, dry |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
---|---|---|---|---|---|---|---|---|---|
LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
10-1073-02 | 0.25 g | .25grams | 3.03 | 87.67 | 52.6 | 32.88 | 23.91 | 17.53 | 4.38 |
10-1073-90 | 100 µmol | .082grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
10-1073-95 | 50 µmol | .041grams | 0.5 | 3.33 | 2 | 1.25 | 0.91 | 0.67 | 0.17 |
Expedite
Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
---|---|---|---|---|---|---|---|---|
Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
10-1073-02 | 0.25 g | .25grams | 4.52 | 0.07 | 84 | 52.5 | 38.18 | 5.25 |
10-1073-90 | 100 µmol | .082grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
10-1073-95 | 50 µmol | .041grams | 0.75 | 0.07 | 8.6 | 5.38 | 3.91 | 0.54 |
Technical documents
Certificate of analysis
CoA search tool
References
Intellectual Property
This product is for research purposes only, and may not be used for commercial, clinical, diagnostic or any other use. The Product is subject to proprietary rights of ELITechGroup and is made and sold under license from ELITechGroup. There is no implied license for commercial use with respect to this Product and a license must be obtained directly from ELITechGroup. with respect to any proposed commercial use of this Product. "Commercial use" includes but is not limited to the sale, lease, license or other transfer of the Product or any material derived or produced from it, the sale, lease, license or other grant of rights to use the Product or any material derived or produced from it, or the use of the Product to perform services for a fee for third parties (including contract research). AquaPhluor®, Yakima Yellow®, Redmond Red® and Eclipse® are registered trademarks of ELITechGroup.
