S-Bz-Thiol-Modifier C6-dT - (10-1538)

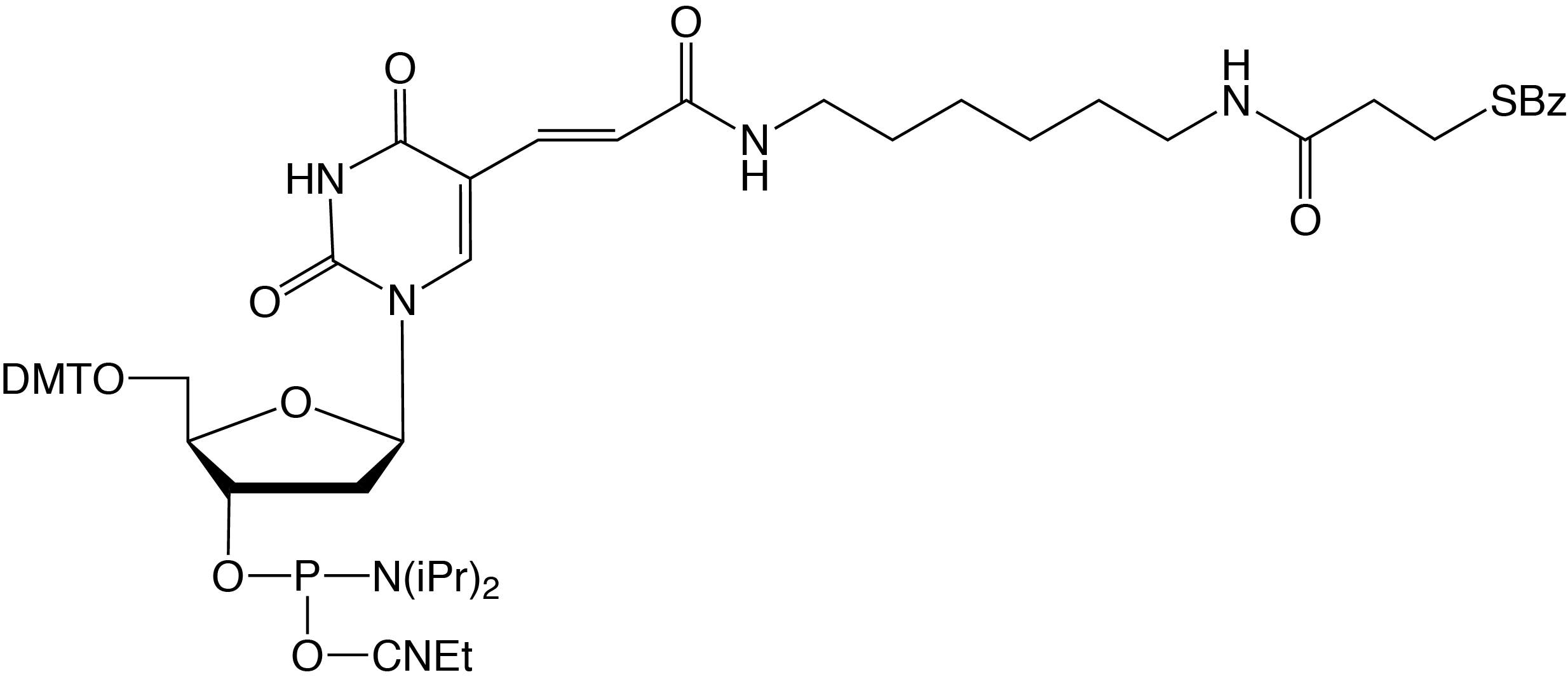

5'-(4,4'-Dimethoxytrityl)-5-[N-(6-(3-benzoylthiopropanoyl)-aminohexyl)- 3-acrylamido]-2'-deoxyuridine, 3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
As low as
$160.00
In stock
Only %1 left
default
10-1538
5'-(4,4'-Dimethoxytrityl)-5-[N-(6-(3-benzoylthiopropanoyl)-aminohexyl)- 3-acrylamido]-2'-deoxyuridine, 3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Description
Our repertoire of NHS ester derivatives has been expanded to include the NHS-Carboxy-dT-CE Phosphoramidite. By making a dT analog of the Carboxy-Modifier C10, it is possible to label one or multiple sites within an oligonucleotide. This opens up the possibility to label any number of different dyes or molecules within an oligonucleotide when the phosphoramidite is unavailable. Doing so is straightforward and may be done manually off the synthesizer or even in a fully-automated manner on the DNA synthesizer.
We have never found conditions which allow the TFA group to be removed from an amino-modifier while the oligonucleotide remains attached to the support. We are able to solve this problem by using a 9-fluorenylmethoxycarbonyl (Fmoc) protecting group. The Fmoc group is removed using a two step procedure, the first to remove the cyanoethyl protection groups and flush the formed acrylonitrile from the synthesis column using 1% diisopropylamine in acetonitrile, and the second to remove the Fmoc group using 10% piperidine in DMF. The amino group so formed on the column can be reacted with a variety of activated esters. We offer Fmoc-Amino-Modifier C6 dT Phosphoramidite as a nucleosidic option and Amino-Modifier Serinol Phosphoramidite as a non-nucleosidic alternative. We also offer S-Bz-Thiol-Modifier C6-dT to join the ranks of thiol-modifiers for oligonucleotide synthesis. Thiol-Modifier C6-dT can be added as usual at the desired locations within a sequence.
Details
Usage
- Coupling: 3 minute coupling time recommended.
- Deprotection: Synthesize using acetyl-protected dC (10-1015-xx). Prior to cleavage, treat support with 10% diethylamine in ACN for 5 minutes at room temperature and rinse with ACN to remove the cyanoethyl protecting groups. Then cleave and deprotect the oligo using 30% ammonium hydroxide/40% methylamine 1:1 (AMA) for 2 hours at room temperature. Prior to use, reduce any disulfide formation using 100 mM TCEP or DTT for 30 minutes at room temperature.
Specifications | |
---|---|
Diluent | Anhydrous Acetonitrile |
Recommended Storage | Refrigerated storage, maximum of 2-8°C, dry |
Stability In Solution | 1-2 days |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
---|---|---|---|---|---|---|---|---|---|
LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
10-1538-02 | 0.25 g | .25grams | 2.29 | 63 | 37.8 | 23.63 | 17.18 | 12.6 | 3.15 |
10-1538-90 | 100 µmol | .109grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
10-1538-95 | 50 µmol | .055grams | 0.5 | 3.33 | 2 | 1.25 | 0.91 | 0.67 | 0.17 |
Expedite
Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
---|---|---|---|---|---|---|---|---|
Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
10-1538-02 | 0.25 g | .25grams | 3.42 | 0.07 | 62 | 38.75 | 28.18 | 3.88 |
10-1538-90 | 100 µmol | .109grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
10-1538-95 | 50 µmol | .055grams | 0.75 | 0.07 | 8.6 | 5.38 | 3.91 | 0.54 |
Technical documents
Certificate of analysis
CoA search tool
