5'-Dichloro-dimethoxy-Fluorescein Phosphoramidite II (Joe II) - (10-5906)

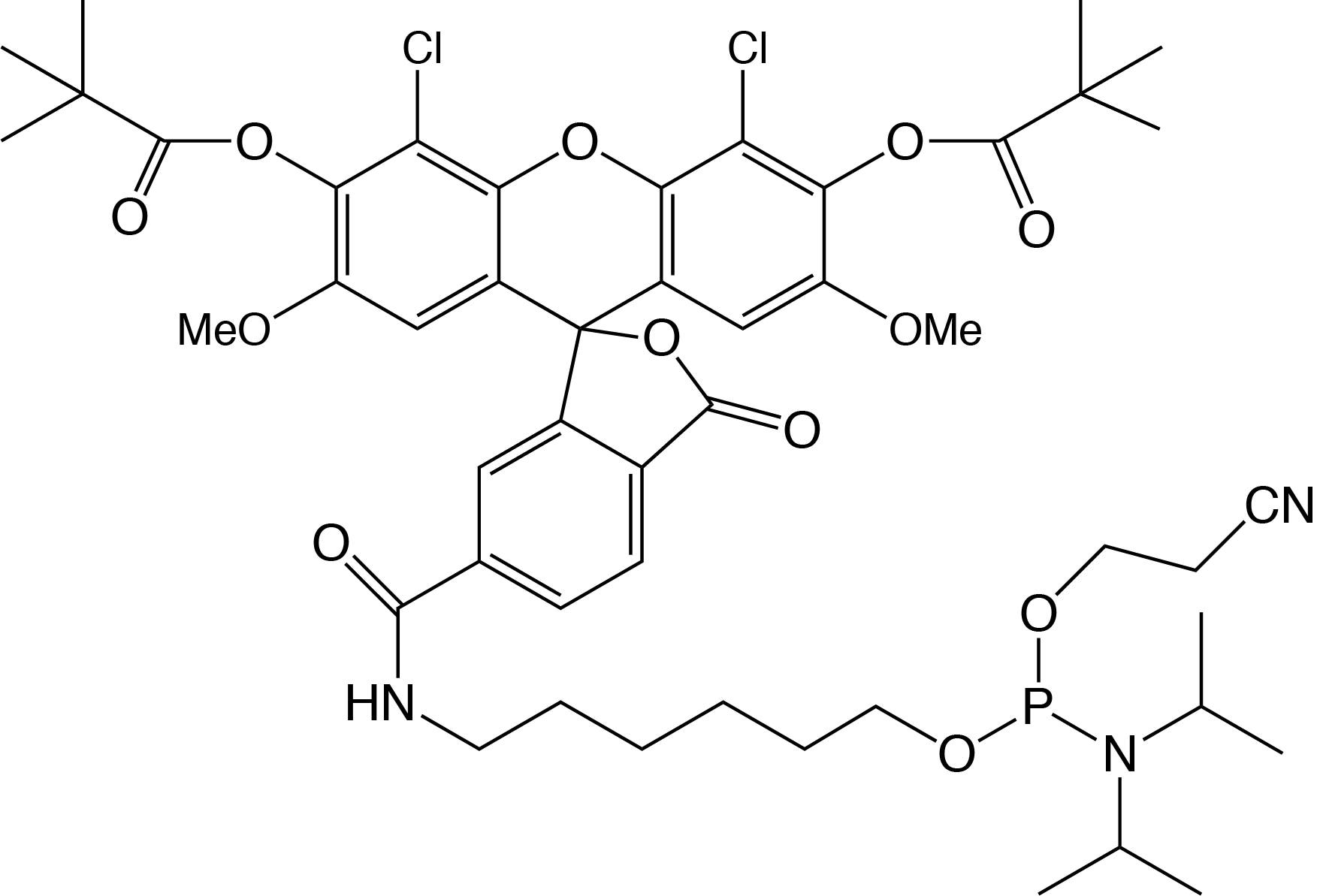

6-(4',5'-Dichloro-2',7'-dimethoxy-3',6'-dipivaloylfluorescein-6-carboxamido)-hexyl-1-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite

As low as $105.00

In stock

Only %1 left

default

10-5906

Product	Options
	To retrieve a catalog number, please select a pack size and format: Copy link to this configuration Size Format See Compatibility Chart 4. Select Your Quantity: Request a quote 3. Price

Product Specifications

Formula:

C₄₈H₆₀Cl₂N₃O₁₂P

M.W.:

972.88

F.W.:

666.4

6-(4',5'-Dichloro-2',7'-dimethoxy-3',6'-dipivaloylfluorescein-6-carboxamido)-hexyl-1-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite

Description

5’-Fluorescein phosphoramidite contains no 4,4’-dimethoxytrityl (DMT) group and can be added only once at the 5’-terminus, thereby terminating synthesis. This product is prepared using the 6-carboxyfluorescein derivative. The tetrachloro-, hexachloro-and dichloro-dimethoxy-fluorescein (TET, HEX and JOE, respectively) phosphoramidites are designed to take advantage of the multicolor detection capability of modern DNA sequencers and genetic analyzers. Fluorescein phosphoramidite is designed to produce the same fluorescein-type structure as had been previously prepared using fluorescein isothiocyanate (FITC). Our fluorescein phosphoramidite also contains a DMT group to allow quantification of coupling. The analogous structure, 6-Fluorescein Phosphoramidite, prepared using 6-FAM, is also available, along with 6-Fluorescein Serinol Phosphoramidite. Fluorescein-dT can be inserted into the desired sequence as a replacement for a dT residue.

The spectral characteristics of this dye is detailed here.

Details

Usage

Coupling: 6 minute coupling time recommended
Deprotection: Use Ammonium Hydroxide and deprotect as required by nucleobases. If AMA is used, a small amount of a non-fluorescent impurity will be formed. To eliminate this impurity, first deprotect with ammonium hydroxide for 30 minutes at room temperature, add an equal volume of 40% methylamine and then complete the deprotection as required by the nucleobases - e.g. 10 minutes at 65°C or 2 hours at room temperature for standard bases

Specifications
Diluent	Anhydrous Acetonitrile
Recommended Storage	Freezer storage, -10 to -30°C, dry
Stability In Solution	1-2 days

Dilution/Coupling Data

The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.

ABI 392/394

Catalog #	Pack Size	Grams/Pack	0.1M Dil. (mL)	Approximate Number of Additions
				LV40	LV200	40nm	0.2μm	1μm	10μm
10-5906-02	0.25 g	.25grams	2.57	72.33	43.4	27.13	19.73	14.47	3.62
10-5906-90	100 µmol	.097grams	1	20	12	7.5	5.45	4	1
10-5906-95	50 µmol	.049grams	0.5	3.33	2	1.25	0.91	0.67	0.17

Expedite

Catalog #	Pack Size	Grams/Pack	Dilution (mL)	Approximate Number of Additions
				Molarity	50nm	0.2μm	1μm	15μm
10-5906-02	0.25 g	.25grams	3.84	0.07	70.4	44	32	4.4
10-5906-90	100 µmol	.097grams	1.5	0.07	23.6	14.75	10.73	1.48
10-5906-95	50 µmol	.049grams	0.75	0.07	8.6	5.38	3.91	0.54
