Dithiol Serinol Phosphoramidite - (10-1991)

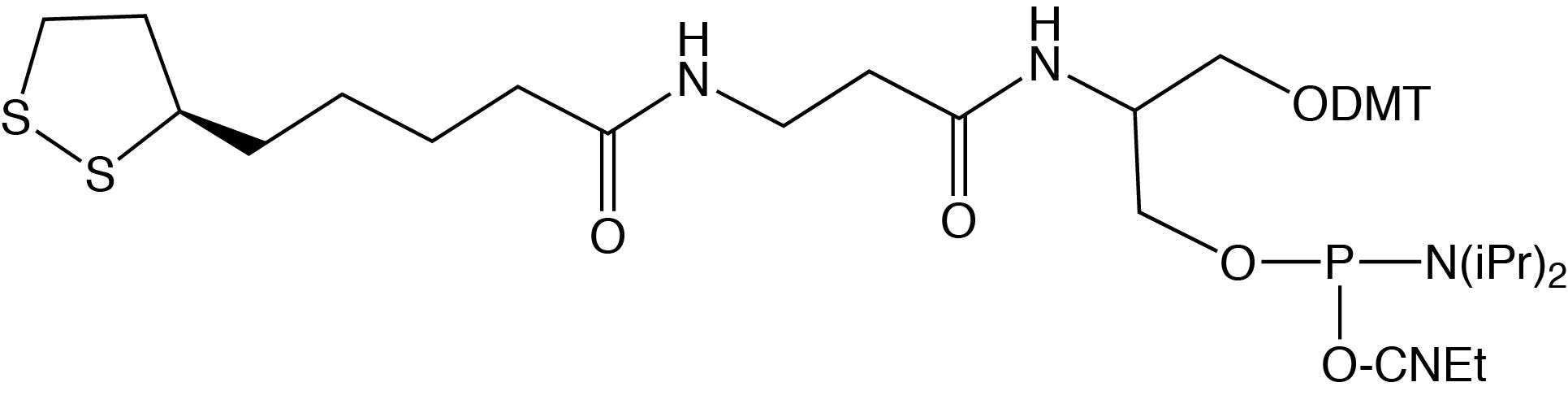

3-Dimethoxytrityloxy-2-(3-((R)-α-lipoamido)propanamido)propyl-1-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite
As low as
$120.00
In stock
Only %1 left
default
10-1991
3-Dimethoxytrityloxy-2-(3-((R)-α-lipoamido)propanamido)propyl-1-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite
Description
The disulfide thiol modifier may be used for introducing 3’- or 5’-thiol linkages. Dithiol Serinol, produced from lipoic acid and our patented serinol backbone, allows easy connection of multiple dithiol-labelled oligos to gold surfaces.
Details
Usage
- Coupling: No changes needed from standard method recommended by synthesizer manufacturer.
- Deprotection: Deprotect as required by nucleobases.
| Specifications | |
|---|---|
| Diluent | Anhydrous Acetonitrile |
| Recommended Storage | Freezer storage, -10 to -30°C, dry |
| Stability In Solution | 2-3 days |
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
| Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions | |||||
|---|---|---|---|---|---|---|---|---|---|
| LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm | ||||
| 10-1991-02 | 0.25 g | .25grams | 2.93 | 84.33 | 50.6 | 31.63 | 23 | 16.87 | 4.22 |
| 10-1991-90 | 100 µmol | .085grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
| 10-1991-95 | 50 µmol | .043grams | 0.5 | 3.33 | 2 | 1.25 | 0.91 | 0.67 | 0.17 |
Expedite
| Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions | ||||
|---|---|---|---|---|---|---|---|---|
| Molarity | 50nm | 0.2μm | 1μm | 15μm | ||||
| 10-1991-02 | 0.25 g | .25grams | 4.37 | 0.07 | 81 | 50.63 | 36.82 | 5.06 |
| 10-1991-90 | 100 µmol | .085grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
| 10-1991-95 | 50 µmol | .043grams | 0.75 | 0.07 | 8.6 | 5.38 | 3.91 | 0.54 |
Technical documents
Certificate of analysis
CoA search tool
Related products
Related Products
Spermine Phosphoramidite
Cat. No.: 10-1939
5'-Maleimide-Modifier Phosphoramidite
Cat. No.: 10-1938
Thiol-Modifier C6 S-S
Cat. No.: 10-1936
3'-Dithiol Serinol CPG
Cat. No.: 20-2991
3'-Thiol-Modifier 6 S-S CPG
Cat. No.: 20-2938
Intellectual Property
This product is covered by US Patent No.: 8,394,948.
